• Output: DC Constant Voltage
• Range AC input/: 180-240v AC
• Built-in active PFC function
• High Efficiency: up to 85%
• Protections: short circuit/over loading/over current/over temperature
• Full protection aluminium housing easy installation
• IP66 design for outdoor installation
• Cooling by free air convection
• Work with leading edge and trailing edge TRIAC dimmers
• Strong compatibility, flicker-free dimming

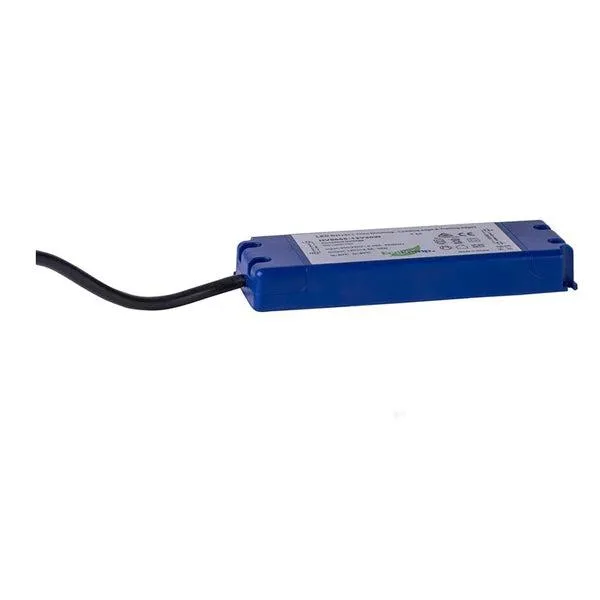

• Triac dimmable LED driver
• Dimmable using HV9625
• Complete with Flex and Plug
• IP20 (Indoor Use)
• Input voltage: 240v AC
• Output voltage: 12v DC | 24v DC
• Output power: 60w
• Minimum Load: 40%
• Maximum Load: 85%
• 2 years replacement warranty

• Length: 200mm
• Width: 70mm
• Height: 43mm

Order Code:

• HV9660-12V60W - 12v 60w
• HV9660-24V60W - 24v 60w
