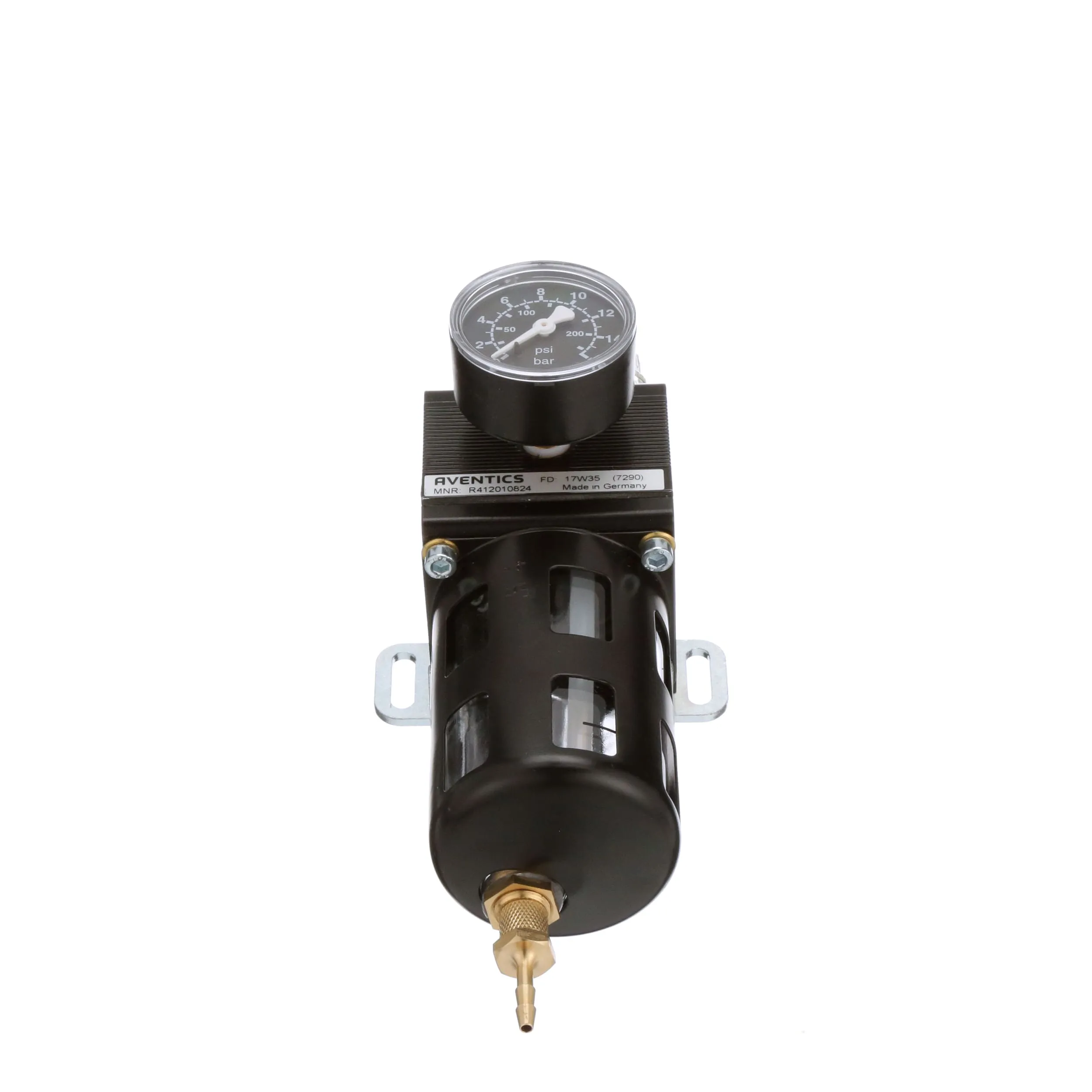

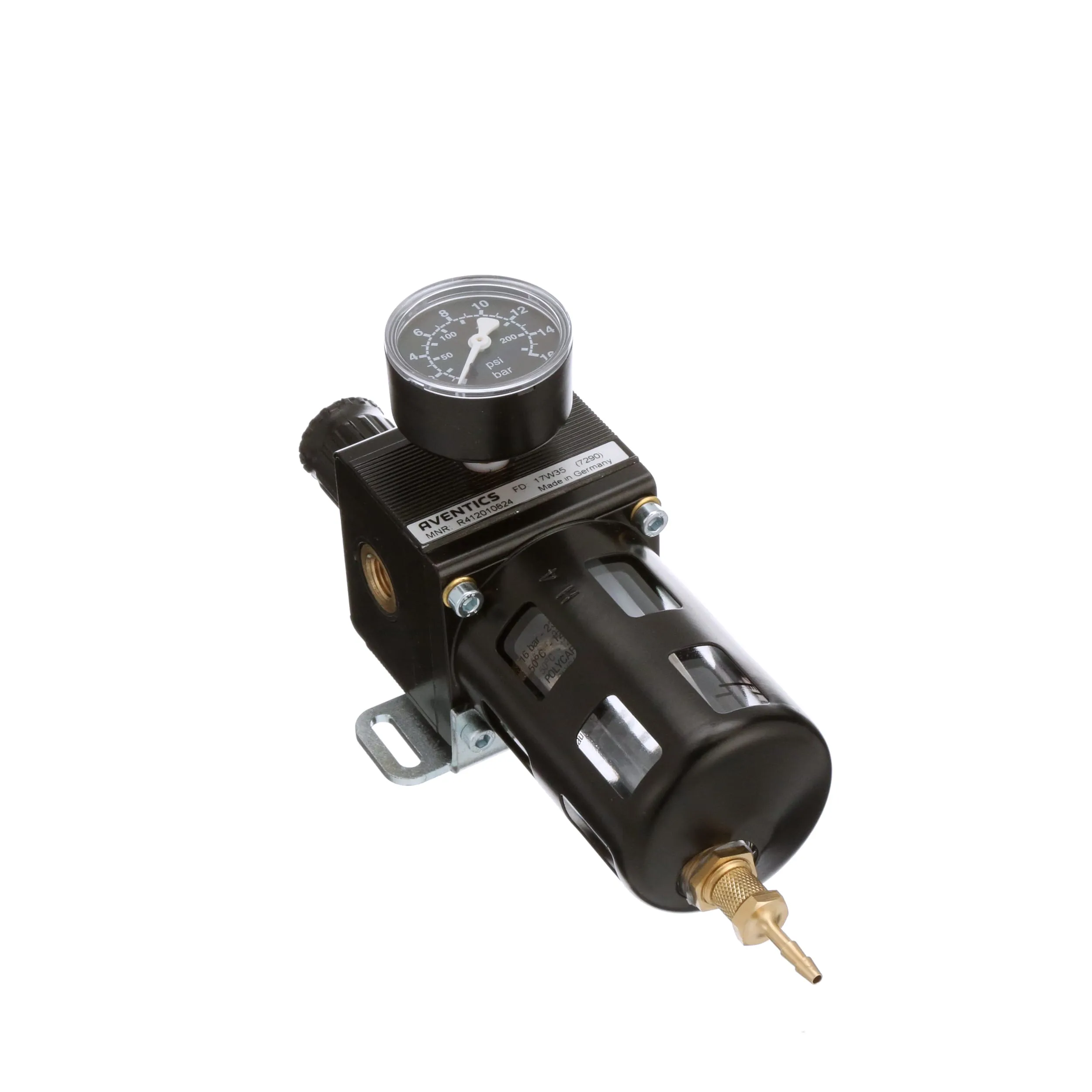

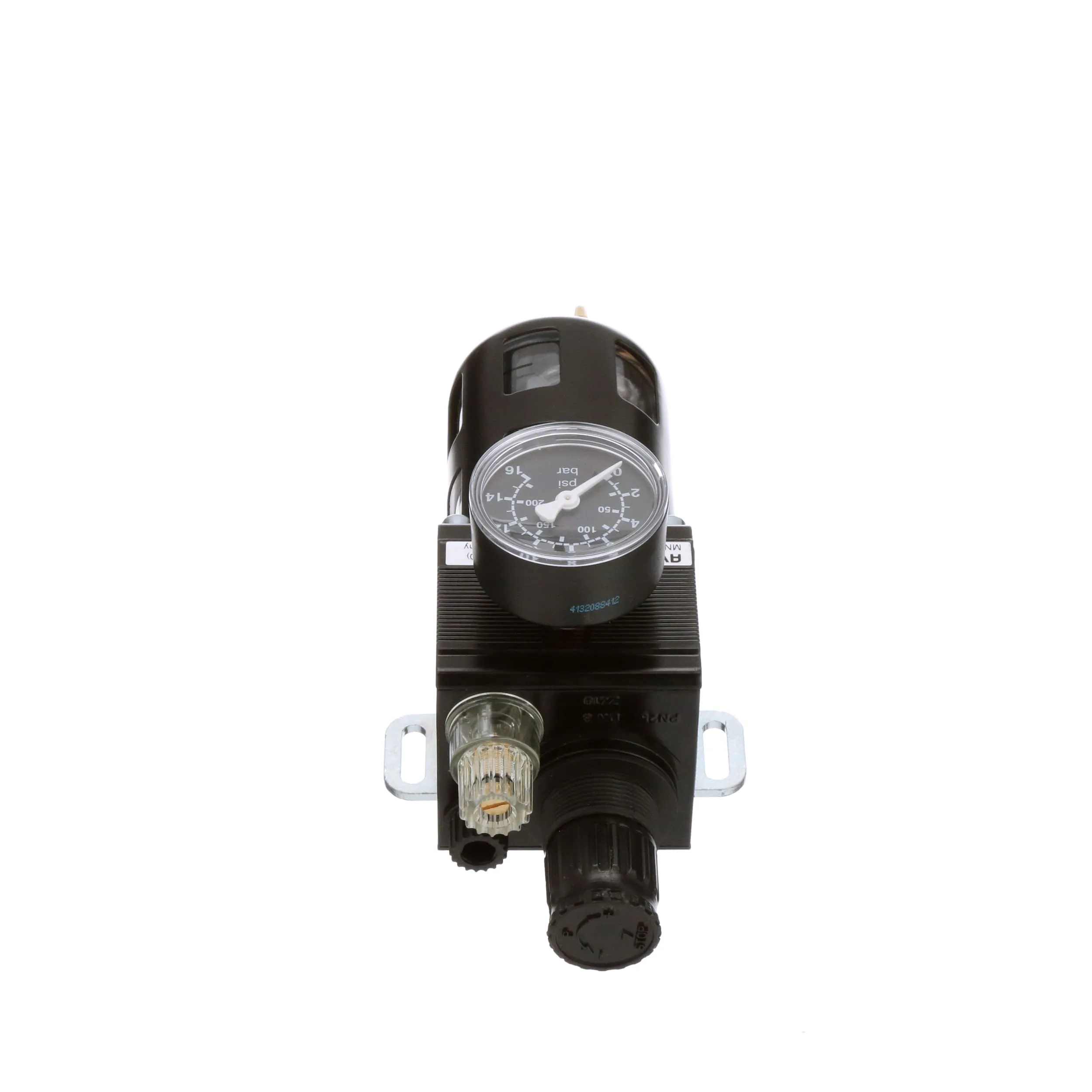

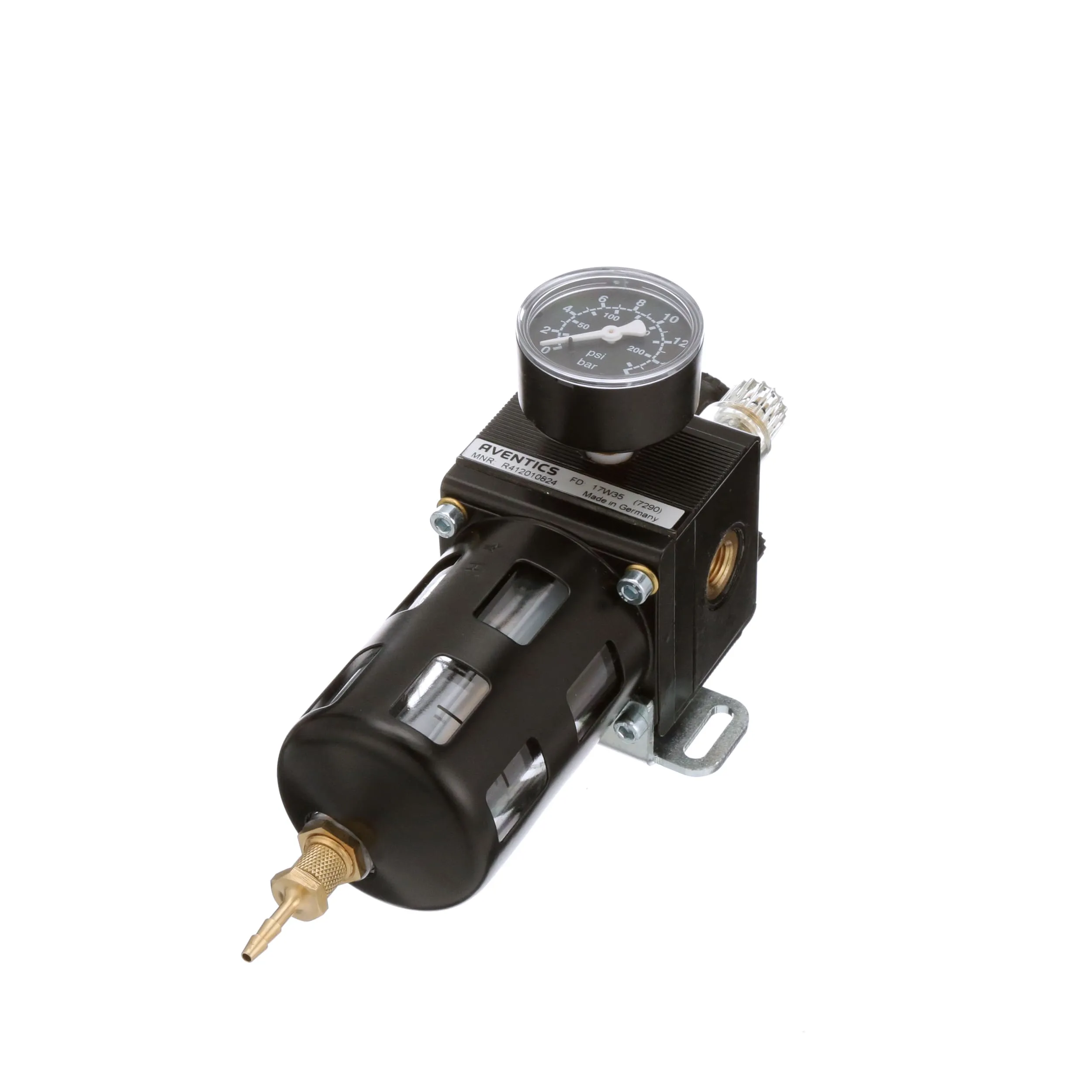

Name: AVENTICS R412010824
SKU: 873210

Product Details ＋

Product Attribute	Attribute Value
Adjustment Range	0.5 bar to 10 bar
Drain Capacity	25 cm³
Material, Bowl	Polycarbonate
Pressure, Operating	2 bar to 16 bar
Series
Temperature, Ambient	-10°C to 60°C

Overview

Unique all-in-one FRL replaces the traditional separate Filter, Regulator, Lubricator systems. The choice for applications that require a basic FRL unit or where space is a premium. Easy adjustment for both pressure regulator and lubrication rate. Everything you need to hook up to your air supply and generate clean, dry and lubricated air.

Features:

Easy to order, one-part number includes FRL, Mounting Bracket and Gauge (0-230psi)

1/4" to 3/4" versions available

Semi-Automatic drain

Filter w/40 Micron sintered bronze filtration

Service kits available
