Product Details
＋
HyperDeck Studio HD Plus
includes all the features of the Mini model but is larger, so it has more space for extra controls and extra connections. This model adds 6G-SDI to record and playback ProRes up to Ultra HD 30fps, including an SDI loop out and HDR support. Plus, the two 6G-SDI outputs allow fill and key playback up to 1080p60.
- Compact model based on the Teranex Mini
- 6G-SDI to record and playback ProRes up to Ultra HD 30fps
- Two 6G-SDI outputs allow fill and key playback up to 1080p60
- HDMI output
- SDI loop out and HDR support
- Dual SD card media slots
- Built-in sync and timecode generators
- Front panel controls and both AC and DC power inputs
- DC power is a broadcast style XLR connector
- A headphone socket and built-in speaker

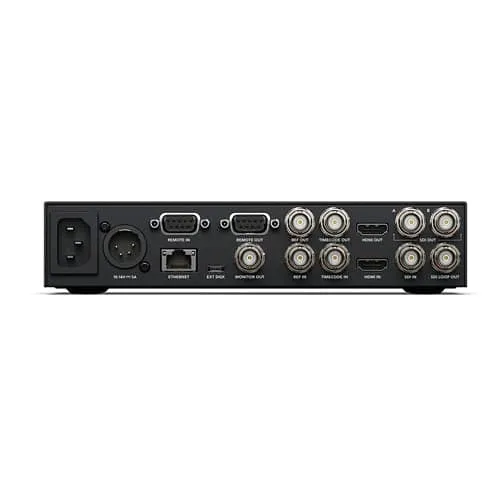

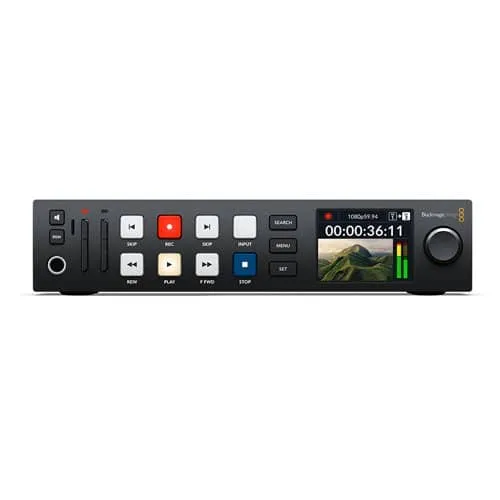

There is also an HDMI input and a dedicated 3G-SDI monitoring output with overlays. Any button pushed on the front panel is sent to a dedicated RS-422 remote output, and the DC power is now a broadcast style XLR connector. The front panel is also upgraded with better transport control buttons, a headphone socket and a built-in speaker.
