Product Details
＋
INSTALLATION TYPE
- Surface mounted
- Suspended (Suspension Kit Required SSI1512, SSY1512)
- End to end installation
CONSTRUCTION
- Select colour temperature with DIP switch
- Extruded alunium body with poly end cap
- Powder coated finish
- Cable tray at back of fitting allows easy connections at various cable entry positions
- Opal polycarbonate diffuser
- High efficiency SMD LED chips
IP RATING
- IP20 suitable for indoor use only
OLD ORDER CODE
- SL9709/60WW
- SL9709/60CW
- SL9709/60DL
- SL9709/120WW
- SL9709/120CW
- SL9709/120DL
NEW CODE
- SL9709/60TC
- SL9709/120TC
TECHNICAL SPECIFICATION
| MODEL NO |
CCT | INPUT VOLTAGE |
POWER | LUMINOUS FLUX |
BEAM ANGLE |
CRI(RA) | FITTING COLOUR |

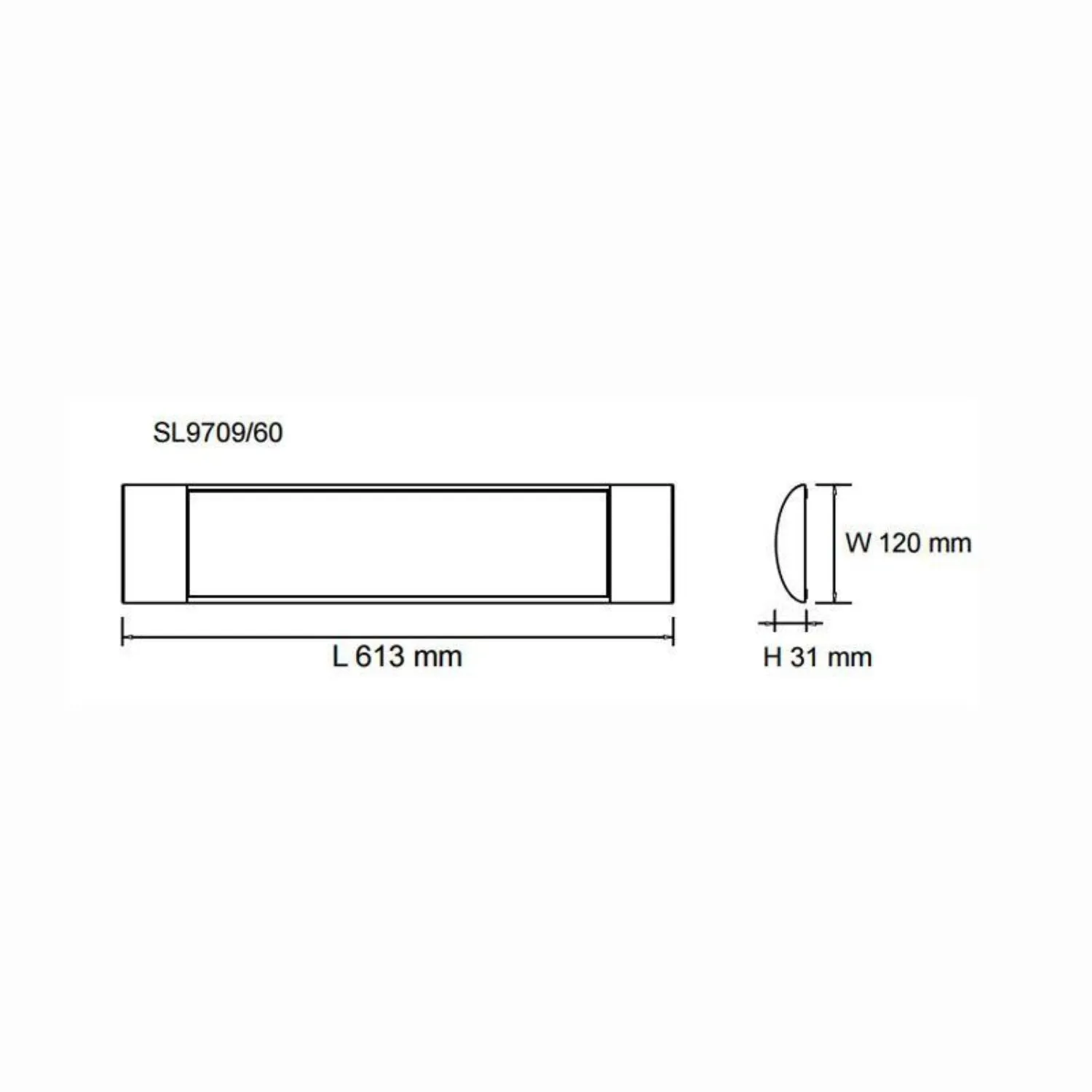

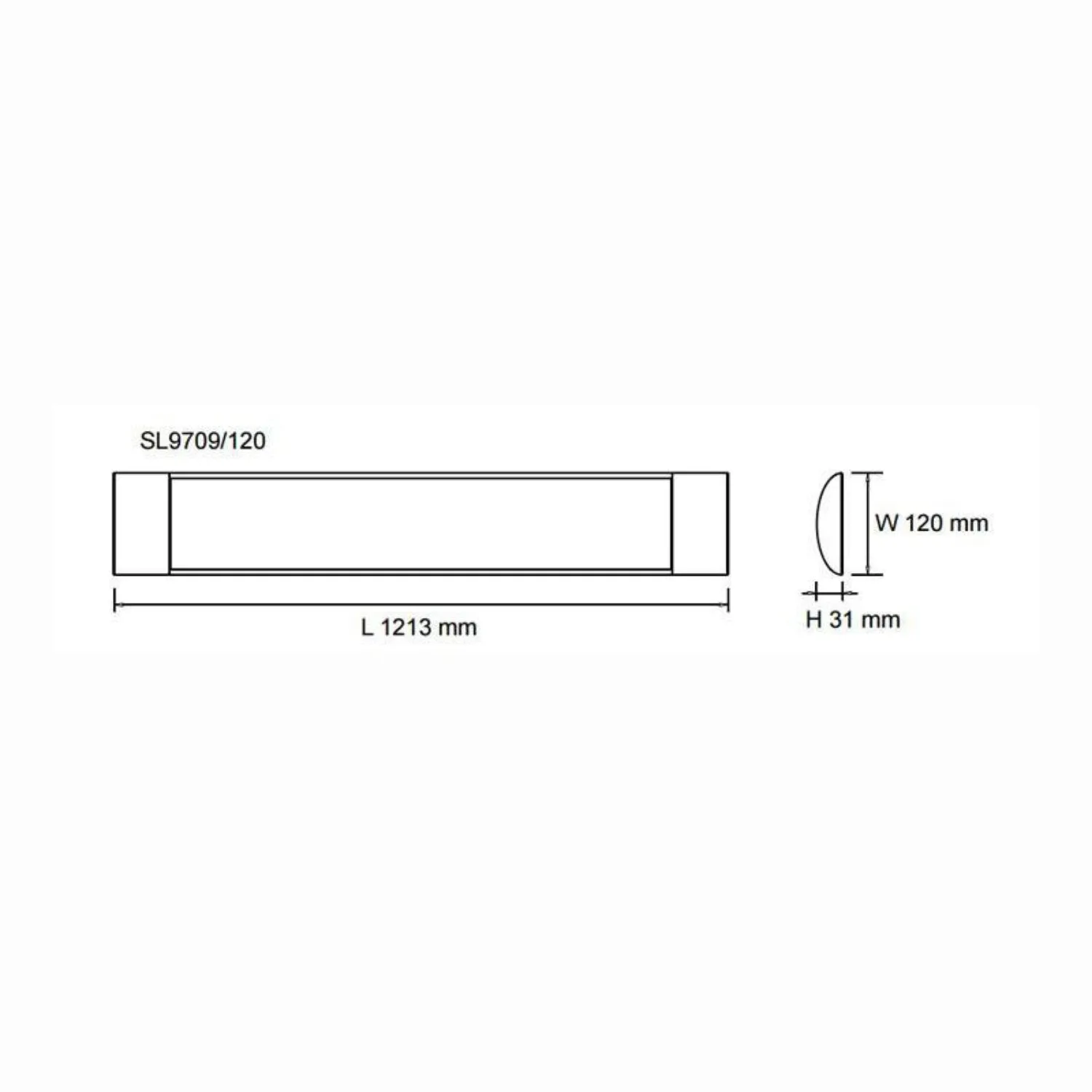

DIMENSIONS L X W X H |
|---|---|---|---|---|---|---|---|---|
| SL9709/60TC | 3000K, 4000K, 5700K | 240V~50Hz | 25W | 3400lm, 3600lm, 3600lm | 120º | >80 | White | 613 x 120 x 31 mm |
| SL9709/120TC | 3000K, 4000K, 5700K | 240V~50Hz | 45W | 6100lm, 6500lm, 6500lm | 120º | >80 | White | 1213 x 120 x 31 mm |
