DiversiTech Wall Mount Bracket for Condensers 48"

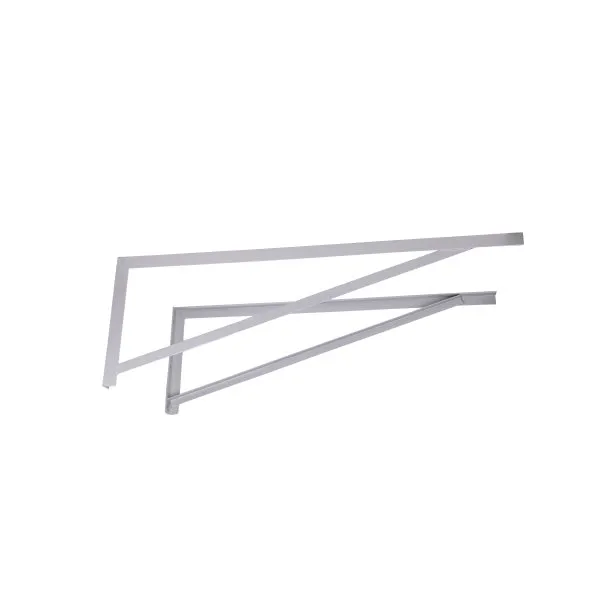

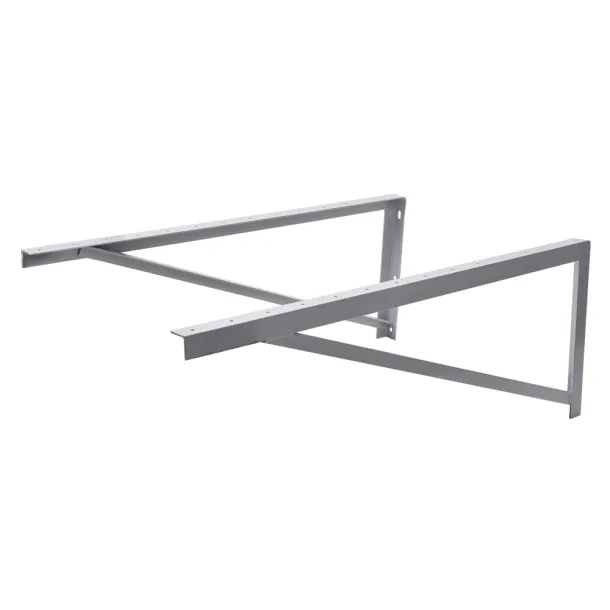

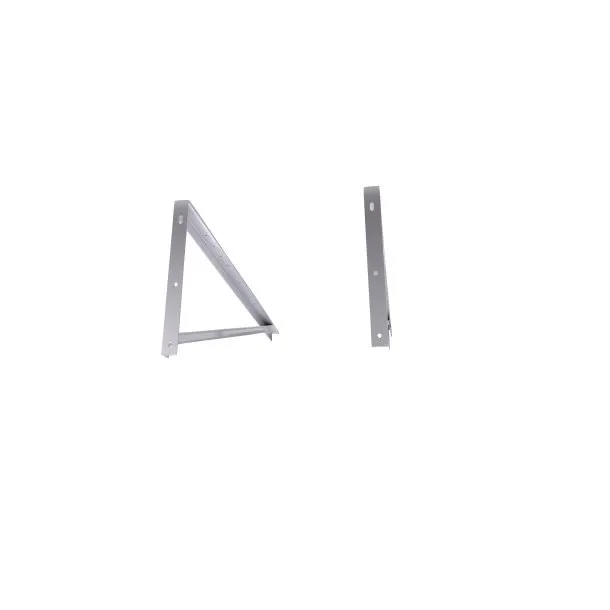

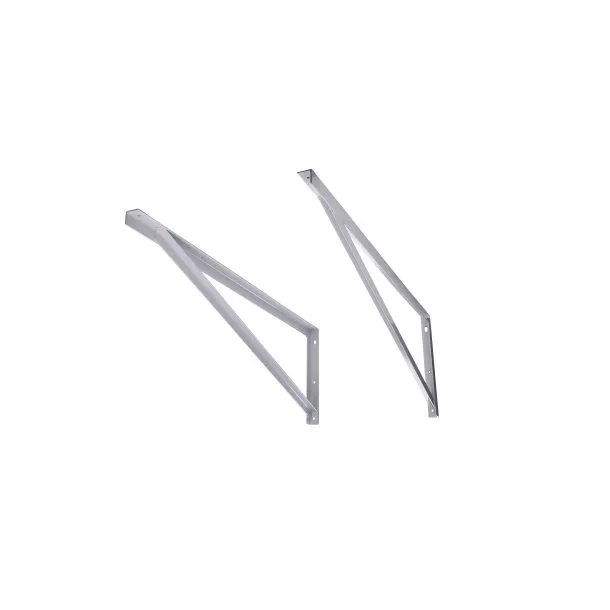

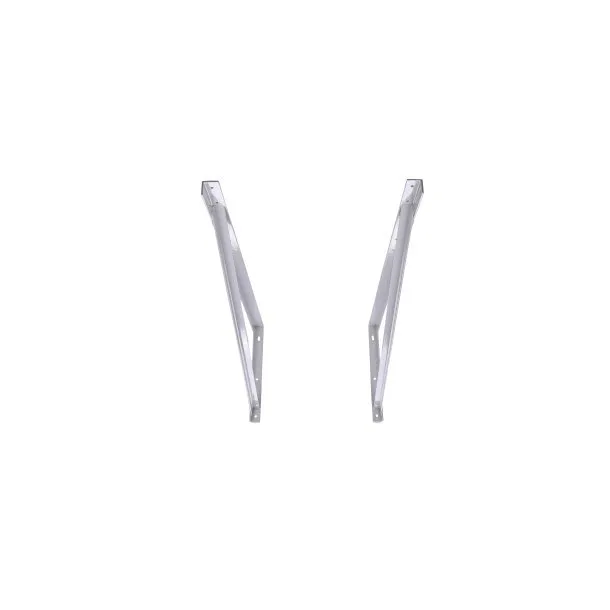

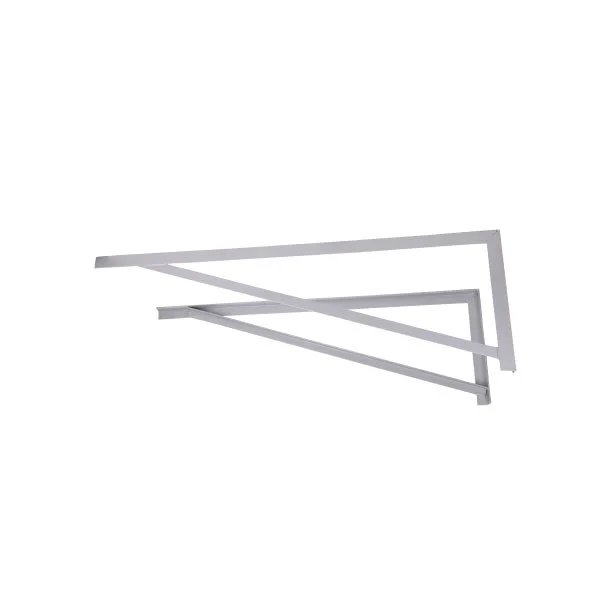

The DiversiTech® A/C wall bracket, ACB-48 is a pair of 48 in. heavy duty brackets used for hanging A/C condensers and heat pumps to the side of a home or building. It is constructed from 10 ga powder coated steel and can support up to 600 lbs. per pair. Installing these brackets avoids time lost waiting for finished grade or landscaping prior to installation of AC unit. This wall bracket is approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved

Features:

• Load rating of 600 lbs. per pair
• Avoids time lost waiting for finished grade or landscaping prior to installation of AC unit.

• Pre-punched 7/16 in. holes for easy installation to wall structure. Pre-punched 15/64 in. holes for equipment mounting

• The ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved.

• Made of heavy duty 10 ga. (9/64 in. thick) steel and powder coated grey finish for added durability.

• Mount at any height to allow for easy maintenance under units.


Specifications:
