17 Civic Type-R FK8 Intercooler Kit by Full Race

The addition of a high performance air-to-air intercooler is the most important upgrade for turbocharged engines. Also known as the ‘CAC’ (Charge Air Cooler) – the colder the charge air temp the better your chances of preventing knock. Under boost, the plastic crimped OEM intercoolers can reach 190-220F at max load. With only the Full-Race Intercooler upgrade installed, temps can drop 90 degrees with inlet temps at or near ambient.

We use the largest and most efficient 4″ thick bar-and-plate intercoolers that can fit the FK8. Optimized Fin pitch, and expertly TIG welded gussetted brackets / endtanks in precise fixtures delivers the reliability and durability Full-Race is known for. This intercooler uses 2.5″ inlet / 2.5″ outlet and is available with water/meth bungs on the coldside charge pipe. Each intercooler is individually pressure tested to 50 psi before shipping.

Features

• High Quality Bar and plate core, tested to 50psi
• 4″ thick x 26″ long x 9″ tall
• Hand fabricated thick aluminum, TIG welded endtanks
• Billet MAP sensor flange welded to endtank
• Includes High Strength Steel Mounting Beam
• 100% plug and play

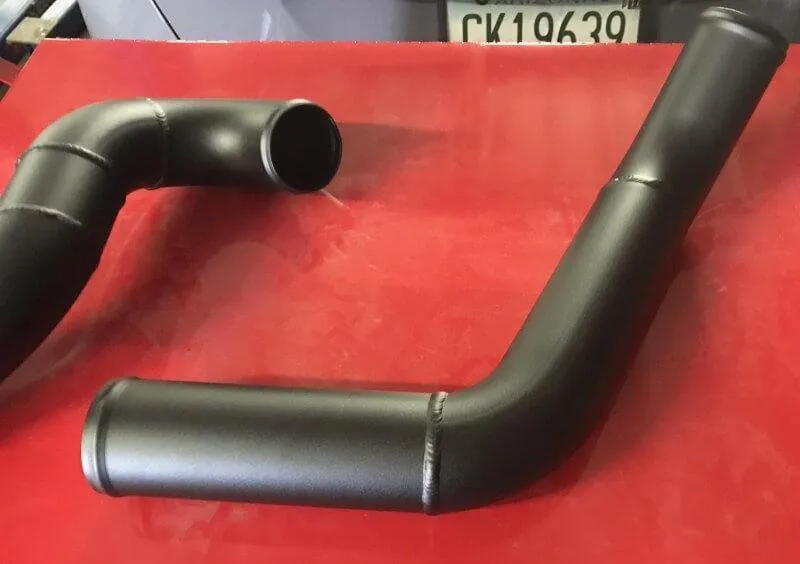

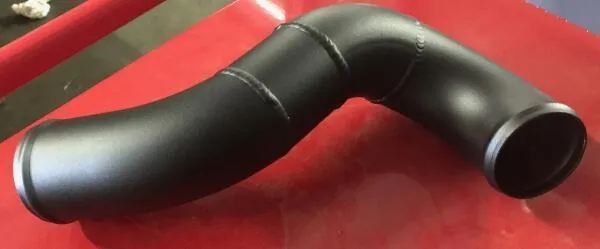

• 2 1/2″ High Grade Aluminum piping
• Piping is Durable Texture Black Powder Coated

Applications

• 2017 Honda Civic Type-R (FK8)

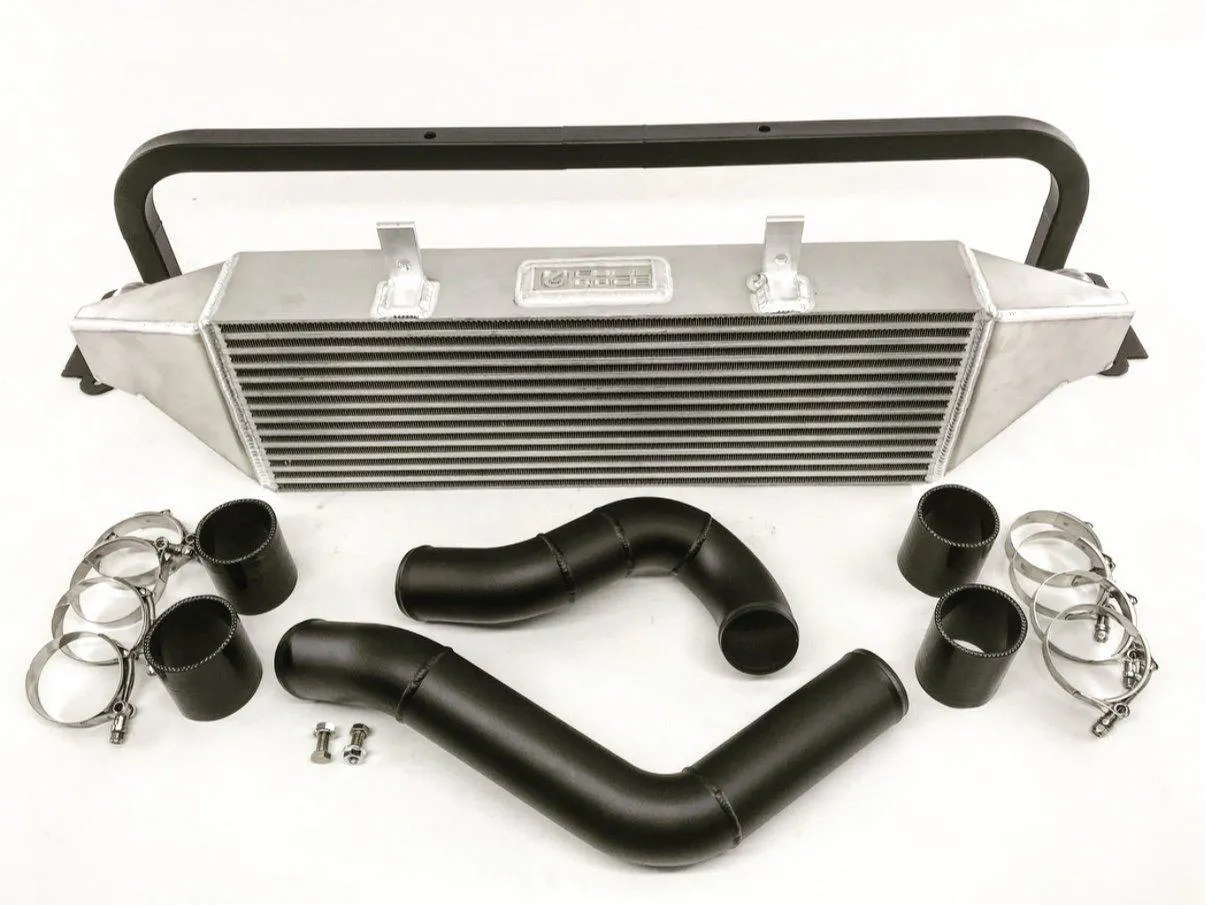

What's In The Box?

• 1 - Full Race Intercooler
• 1 - Full Race Intercooler Piping Kit
• Couplers and Clamps
• Necessary Hardware

Warranty

• Manufacturer Standard Warranty
