Part No: v47254 / v47260

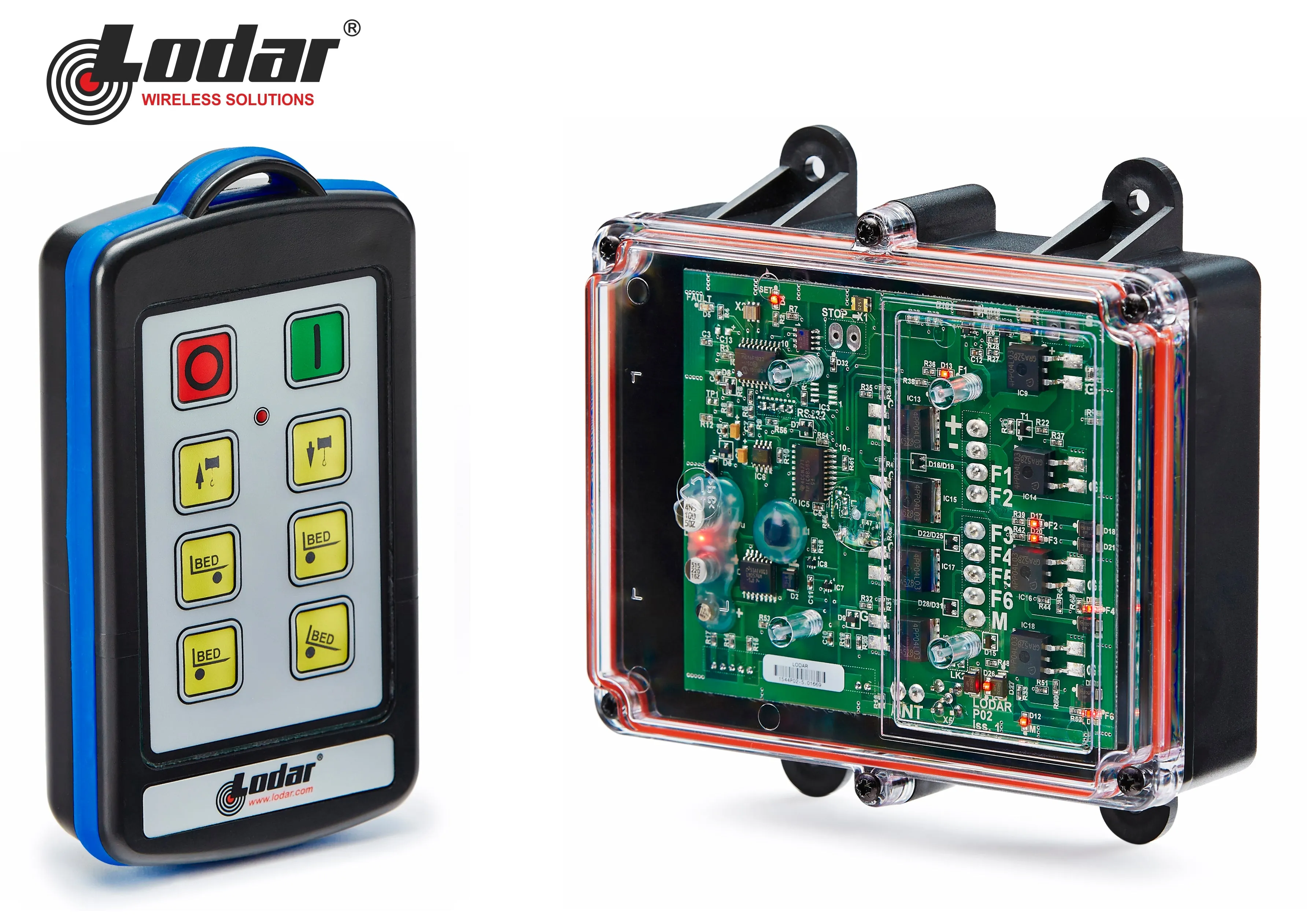

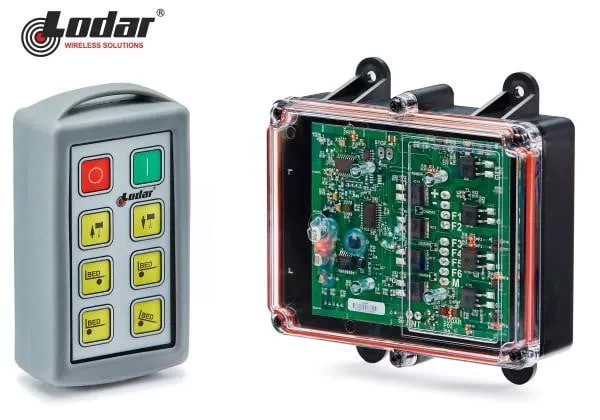

LODAR 6 function radio remote control system with Standard or IP Transmitter, 15 amp DC, for remote operation of commercial vehicle equipment, typically used for winching. The receiver is suitable for 12v/24v electrics and electro-hydraulics, it is waterproof to IP65, with 4 external fitting points.

System Options:

Standard - The system has the Master Stop function. The standard 6 function system provides control of 3 processes, e.g. Winch In/Out, Tilt Up/Down, Slide In/Out. The transmitter is the which is water resistant (IP54).

IP - The system is the same as the standard system, but has an which is more robust than the standard transmitter and is waterproof (IP65).

The system comes with 5-year pro-rated warranty - the first 2 years are unlimited.

Transmitter button images:

The 'Standard Set' system is supplied with the handset Insert #1 (top row: winch in/out; middle row: bed in/out; bottom row; bed tilt up/down - see photos).

The 'Custom Set' system is supplied with handset images of your choice selected from a range of images available from the STD 6f Inserts library, click to download the pdf file, the inserts are grouped in two columns of 3 (eq Insert #1 consist of columns 1L & 1R), please use the comments box when ordering for the set you require, otherwise we will contact you.

This item is shipped directly from the manufacturer, allow 5-7 days for delivery
