Product Details
＋

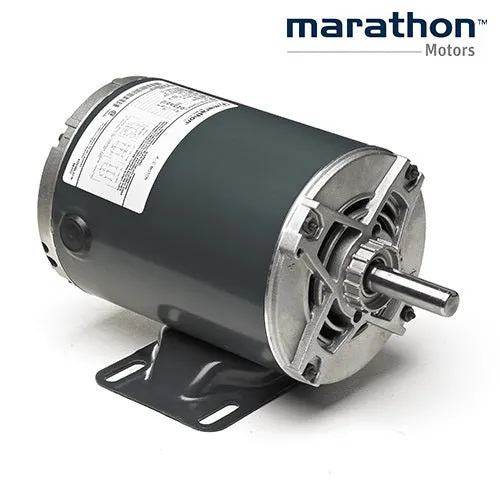

MARATHON Catalog Number: EK041, K041, K041A,
Model Number: 056T17D5310,
General Purpose, Three Phase
Dripproof, Rigid Base
Features:
• EISA compliant efficiencies, as noted
• Ball bearings (except where noted)
• NEMA Service Factors
• Will accept C-Face Kits, see Accessories Section (except as noted)
• UL Recognized and CSA Certified
• EISA compliant efficiencies, as noted
• Ball bearings (except where noted)
• NEMA Service Factors
• Will accept C-Face Kits, see Accessories Section (except as noted)
• UL Recognized and CSA Certified
Nameplate Specifications
| Output HP: | 2 Hp | Output KW: | 1.5 kW |
| Frequency: | 60 Hz | Voltage: | 230/460 V |
| Current: | 6.0/3.0 A | Speed: | 1725 rpm |
| Service Factor: | 1.15 | Phase: | 3 |
| Efficiency: | 86.5 % | Power Factor: | 74.5 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | A | KVA Code: | N |
| Frame: | 56H | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 22 |
| Number of Speeds: | 1 |
