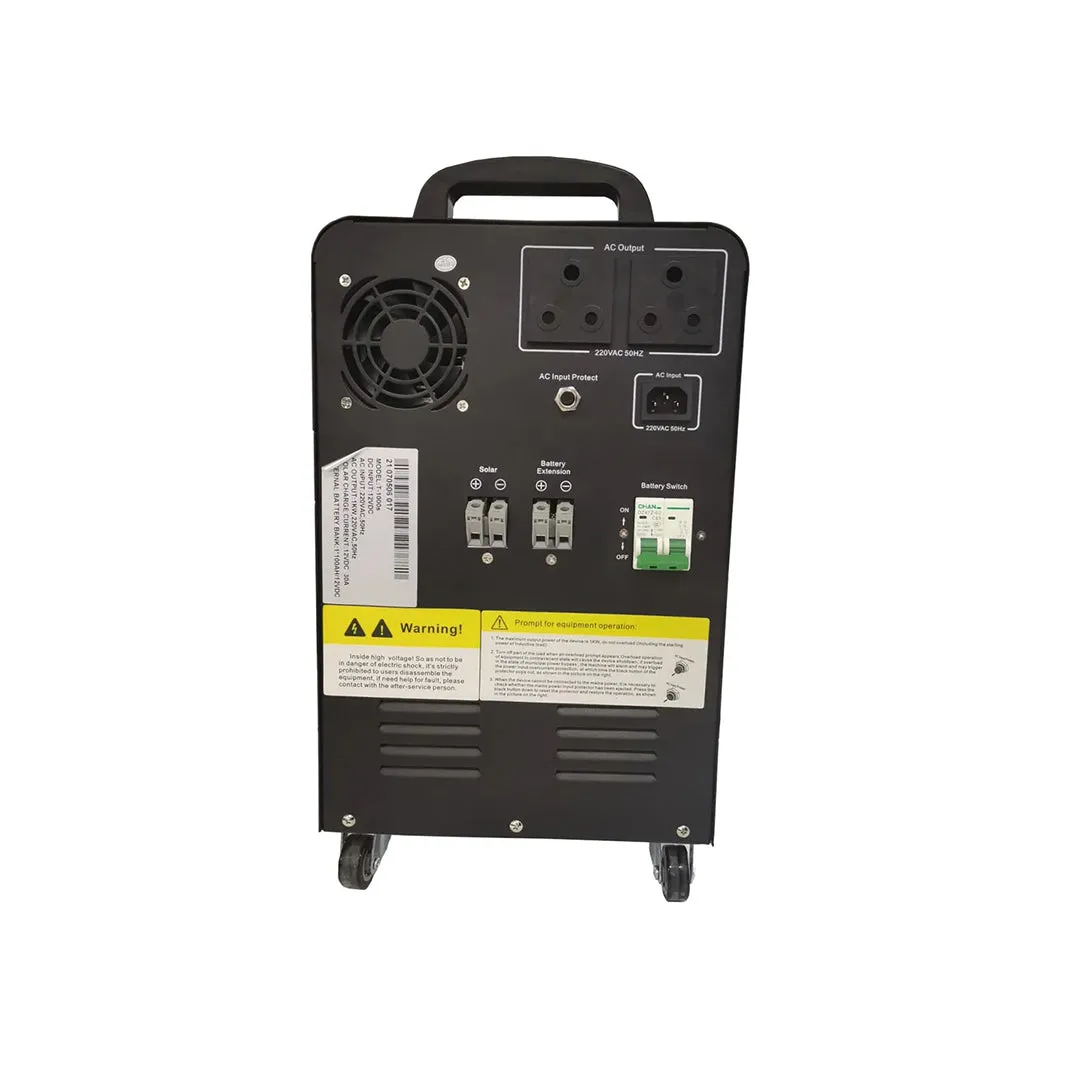

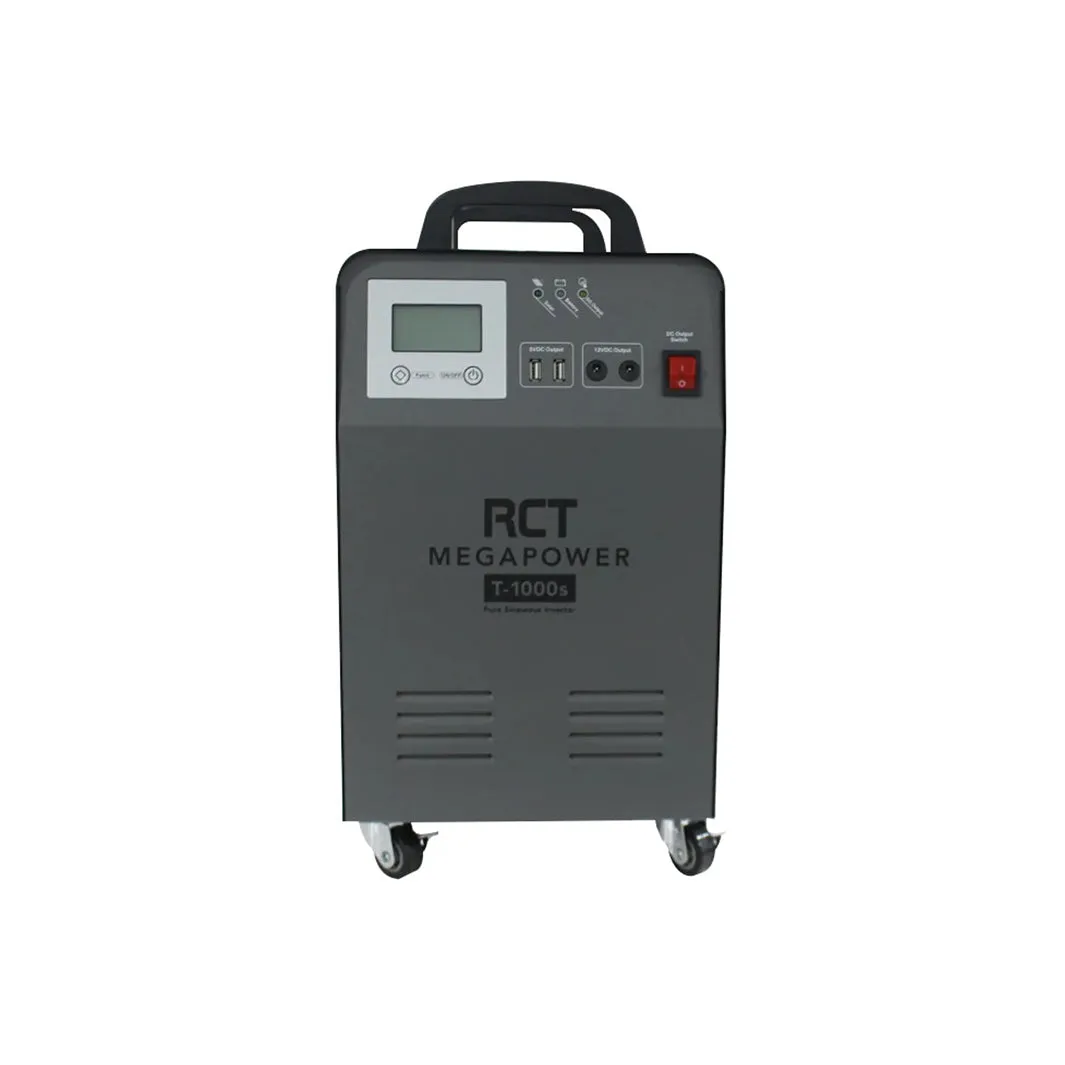

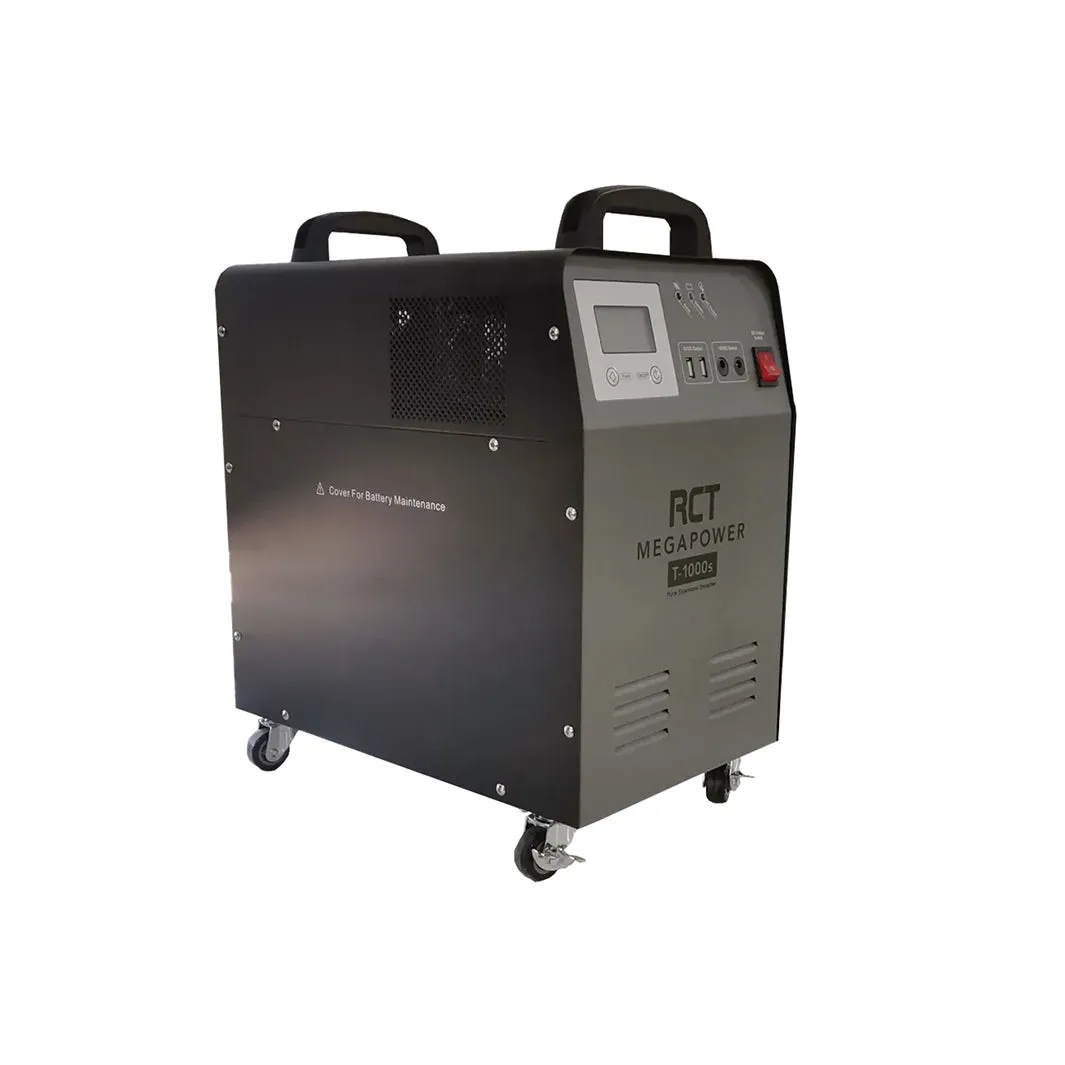

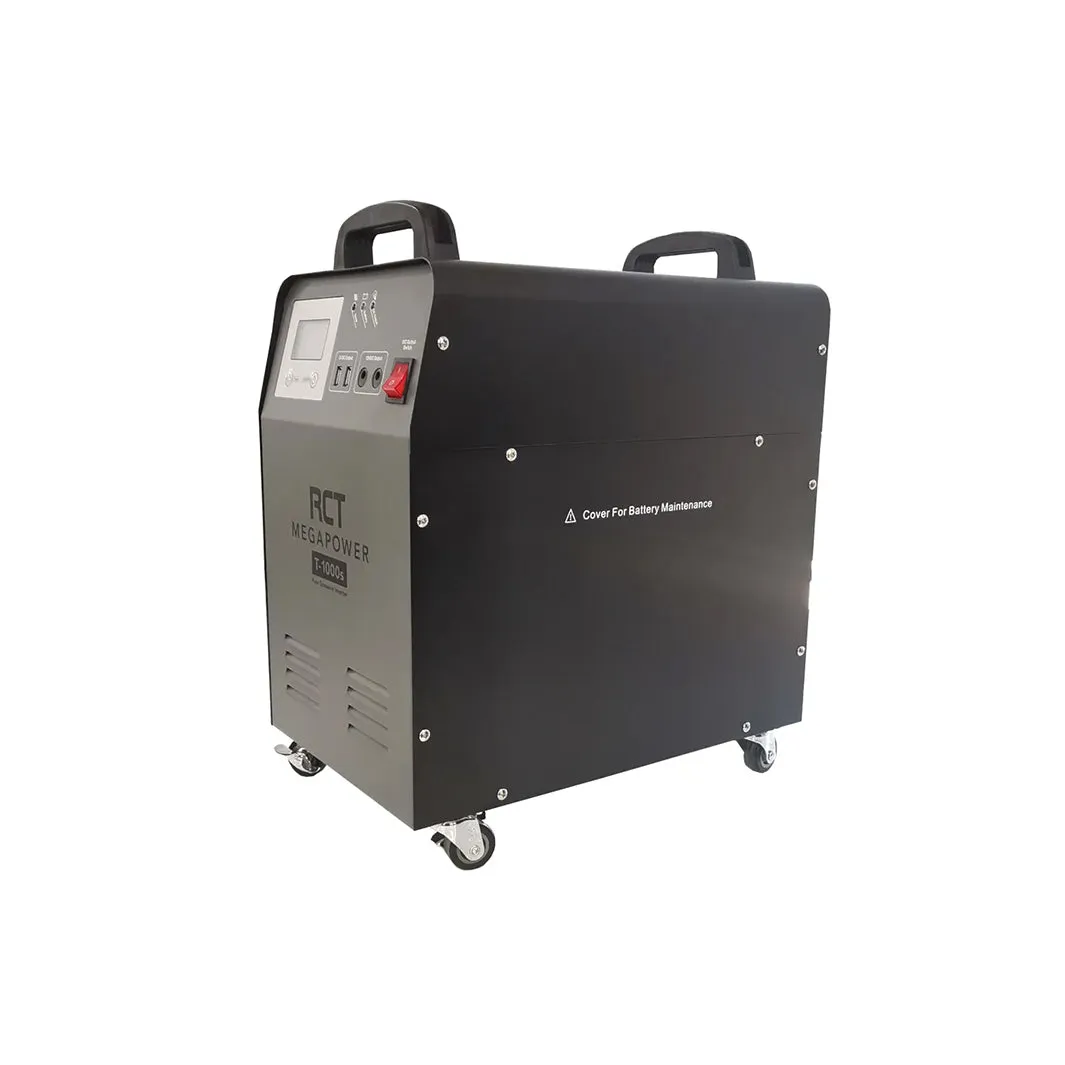

RCT Megapower 1kVA/1000W inverter trolley with 1 x 100Ah Lead Acid Battery

Features

• Pure Sinewave for Sensitive Electronics & Motorised Loads.
• Microprocessor Control Optimizes Reliability.
• Input Power Factor Correction.
• Output Power Factor 1.0.
• Comprehensive Display Allows Easy Monitoring & Access of UPS Status.
• Built-in MPPT solar charger.
• 2 x USB 5 V DC output and 2 x 12 V DC output.
• Battery cut off switch for safety.
• Pre-installed batteries.

Inverter

• Rated power: 1000 W.
• Output voltage: 220 VAC.
• Output frequency: 50 / 60 Hz.
• Output waveform: Pure Sine Wave.

Solar Input

• Maximum photovoltaic voltage (VDC): ≤ 25 V
• Charge voltage (VDC): 10 V - 25 V
• Rated charge current (A): 30 A
• Maximum power (Wp): 360 Wp
• Voltage overcharge protection (VDC): 14.2 V
• Voltage overcharge recovery (VDC): 14.0 V
• Voltage of floating charge (VDC): 13.7 V

DC Output

• Voltage of high-voltage protection (VDC): 16 V
• Voltage of high-voltage recovery (VDC): 15.2 V
• Voltage of low-voltage recovery (VDC): 12.6 V
• Voltage of low-voltage protection (VDC): 11 V
• 5 V DC USB Output port: 2 Units / MAX 2 A
• 12 VDC Output port: 2 DC Ports (Max 2 A)
• Starting temperature of the exhaust fan: > 45ºC
• Ambient temperature for operation: 0 - 40ºC
• Ambient temperature for storage: -25 - 55ºC
• Operation / storage conditions: 0-90% (No Condensation)

General

• Charge by a mains supply rated voltage: 220 VAC
• Charge current: 10 A (Max.)
• Product dimensions: 423 mm x 260 mm x 453 mm
• Warranty
• 1 Year (Electronics)
• 6 Months (Batteries)

Battery

• Rated Voltage: 12V.
• Capacity (10hr,1.80V/Cell): 100Ah.
• Weight: 31.5Kg.
• Max Discharge Current: 30I10A(3min).
• Max Charge Current: ≤0.25A C10.
• Self- Discharge (25℃): ≤3%/month.
• Recommended Using Temperature: 15°C~25°C.
• Cover Material: ABS.
• Dimensions: 407mm x 174mm x 209mm.
