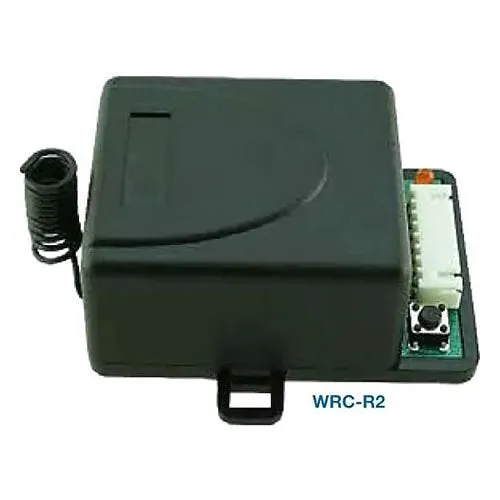

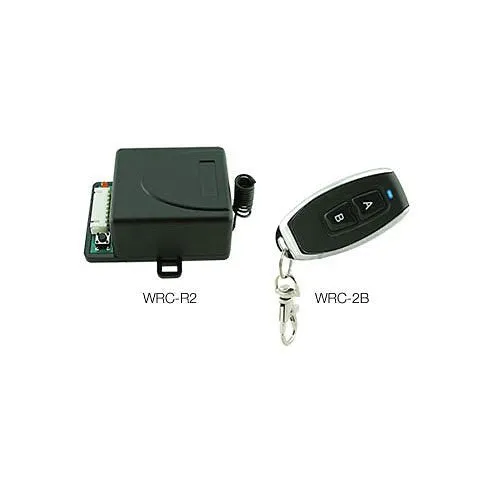

SDC's WRC Series 2-Channel wireless transmitter/ receiver solution is specifically designed to be used as a receptionist button or remote release for single or dual door access control applications. Receiver has the capacity to learn up to 30 fixed transmitter codes using the onboard learning button and status LED.

FEATURES

• Transmitts and Receives at 433.92MHz Frequency
• Transmitter operates with WRC-R2
• Transmitter features Pendant Keychain type housing
• Receiver includes 12", 8-Wire Pigtail for Quick Installation
• Capacity to learn up to 30 Transmitters codes per Receiver unit via onboard Learning Button and Status LED
• 4 field-selectable Operation Modes:
• Timed (3s): Remote button "A" activates relay "A" for 3 seconds (fixed); remote button "B" activates relay "B" for 3 seconds (fixed). Both relays may be activated at the same time.
• Toggle: Pressing remote button "A" activates relay "A". Relay "A" remains active until remote button "A" is pressed again; Pressing remote button "B" activates relay "B". Relay "B" remains active until remote button "B" is pressed again. Both relays may be activated at the same time.
• Manual (M) (default): Pressing remote button "A" activates relay "A". Relay "A" remains active only while remote button "A" is pressed; Pressing remote button "B" activates relay "B". Relay "B" remains active only while remote button "B" is pressed.
• Latching (L): Pressing either remote button activates its respective relay. The relay remains active until the other remote button is pressed, activating its respective relay.
