Model: 6100-A-ALR-36
Yale 6100-A-ALR Rim Exit Device w/ Sounding Alarm Kit

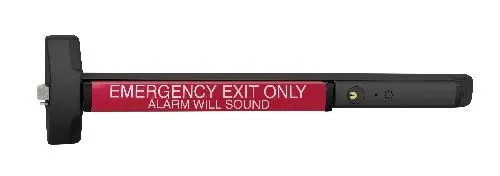

This 6100 rim exit device to be used with single swing or pair-swing doors constructed of metal, wood or composite materials. Designed for application in high use areas, it can be combined with a variety of trims to match any desired style. This exit device comes standard with a built-in sounding alarm and the device is Black Powder Coat (BSP) finish. The touch bar on the Yale 6100 ALR series exit device comes standard with a red screen printed touch/push pad that states "Emergency Exit Only Alarm Will Sound."
Features of the Yale 6100-A-ALR series rim exit device:
- Designed for wide stile doors
- 3/4" throw deadlocking stainless steel pullman latchbolt
- Non-handed for easy installation
- Cerified ANSI/BHMA A156.3 Type 1 Grade 1 standards
- Can meet the Buy American Act. Contact MDI Supply for more details.
- Alarm Loudness: 90db @ 10 Feet
- Alarm Power Source: Battery Operated (9V battery included).
- Low battery warning is an Audible chirp.
- Device Status: A Red LED indicator will illuminuate every 30 seconds when alarm is armed.
- Tamper Resistant: Built-in safety monitor sounds alarm when tampering occurs.
Details and product specs of the Yale 6100-A-ALR series rim exit device:
| Applications: | Single swing doors; Pairs of doors with removable mullions; Wide stile aluminum, metal, wood or composite door materials |
| Door Thickness: | 1 3/4 standard |
| Available Finishes: |
BSP - Black Powder Coat |
| Rail Sizes: | 36" for 30" - 36" doors; |
| Projection: | 3 1/4" (83 mm) active; 2 1/2" (63.5 mm) dogged) |
| Fasteners: | Machine screws or wood door screws standard for panic; sex nuts and bolts (SNB) supplied standard for fire rated |
| Power Requirement: | One 9-Volt Battery (included). |
| Hubs: | 3/8" solid steel, fine-blanked and heat treated for additional strength. |
| ANSI/BHMA: | Certified ANSI/BHMA A156.3 T ype 1 Grade 1 standards |
| Latchbolt: | Stainless steel pullman style, 3/4" (19mm), deadlocking |
| Dogging: | Cylinder Dogging - requires a mortise cylinder (cylinder is optional). |
| Handed: | Non-Handed. |
| Available Trim Options: |
EXIT ONLY - No exterior trim. Nothing outside (no lever, no cylinder). |
| Cylinders & Keyway: |
A mortise cylinder is required to operated alarm (Dogging Feature). The mortise cylinder for Dogging is supplied as Para Keyway and is satin chrome-US26D finish. |
| Factory Warranty: |
10-year Limited Warranty (on exit device only); 2-year factory warranty on Trim Levers. |
| Mfg Model #: | 6100-A-ALR-36-BSP |
| MDI Supply Item #: | YALE-6100-A-ALR-36-BSP |
| Packaged & Sold: | Individually |
